Harbours

SAFETY OPERATIONS



  • Measuring the speed and the wind direction, temperature and humidity
  • Inform extreme weather conditions
  • Manage dangerous situations

Knowing the weather data at the sea is essential to ensure the safety of ships at entrances and exits to the pool and dock.  With the automatic sensor WST6000N and METEONET software provides the ability to continuously monitor your area of concern from remote locations.

SAFETY OPERATION

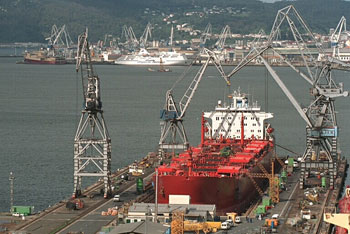

Tons of material  are loaded and unloaded at ports everyday. Crane operators must be notified of wind peaks which may unbalance loads endangering the crane operator, dock workers and the safe delivery of expensive cargo. For the establishment of pipelines discharging the fluids, the approach for docking to the wind is crucial.Other benefits ...

  • The automatic weather sensors WST6000N can be networkedto cover an area with METEONET software
  • The transmission measurements are made both by cable, fibre optic,  modem, wireless, mobile, Intranet or Internet
  • The automatic weather sensors WST6000N are equipped to incorporate measures of external sensors such as rain  gauges, temperature probe or additional measures of visibility
Weather sensor WST 6000 N

WST6000N

Naval meteorological weather sensor

Special Galvanic protected
0 -70 m/s
-40 +60 °C
300 -1100 hPa
RS-485 Serial link

» details

Weather sensor WST 6000 N

WST 6000 NHS

WST6000NHS
Naval weather sensor with de-icing heating system

Special galvanic treatment
0 - 70 m/s
-40 +60 C°
300 -1100 hPa
RS-485 Serial link

» details

GEPAL Alarme Module

GEPAL Alarme Module

GEPAL
Alarm Box

Safety Alarm Management related to the meteorological parameters.
Can be connected directly to the PLC of the client installation.

» details

Watertight power supply box PWR 48E or PWR 48NE for weather sensors WST 6000HS or WST 6000NHS

Watertight power supply box PWR 48E or PWR 48NE for weather sensors WST 6000HS or WST 6000NHS

PWR 48E
Water tight power supply box

100VAC to 240VAC
50Hz or 60Hz
480W

Converter AC/DC 48V / 10 A
300 X 300 X 200

» details

Power Supply Module PWR 24 for indoor applications (not water proof) with converter RS 485 / RS 232.

Power Supply Module PWR 24 for indoor applications (not water proof) with converter RS 485 / RS 232.

PWR 24
Power Supply Module
240 VAC to 24VDC
50 or 60 Hz
50 W

Converter AC/DC 24V / 2,5A
Converter RS-485 / RS-232

» details

Meteonet Mono and Multi Software

Meteonet Mono and Multi Software


SOFTWARE FOR METEONET MONO AND MULTI
Software for PC and LAN /Intranet showing the measured data's from IRDAM weather sensors

» details
